Pinnd E-Bike Cranks - Bosch / Isis
Pinnd E-Bike Cranks
Made in Scotland from 7075 T651 anodised aluminium and certified for Enduro (Cat 4) use, the PINND E-Bike Cranks are available in 145, 155 and 165mm lengths.
Optimised for Bosch Performance Line CX drive units, they are also compatible with most e-bike systems using the ISIS spline interface.
Features:
- Offering shorter lengths for better ground clearance
- Self extracting design for ease of fitting and removal

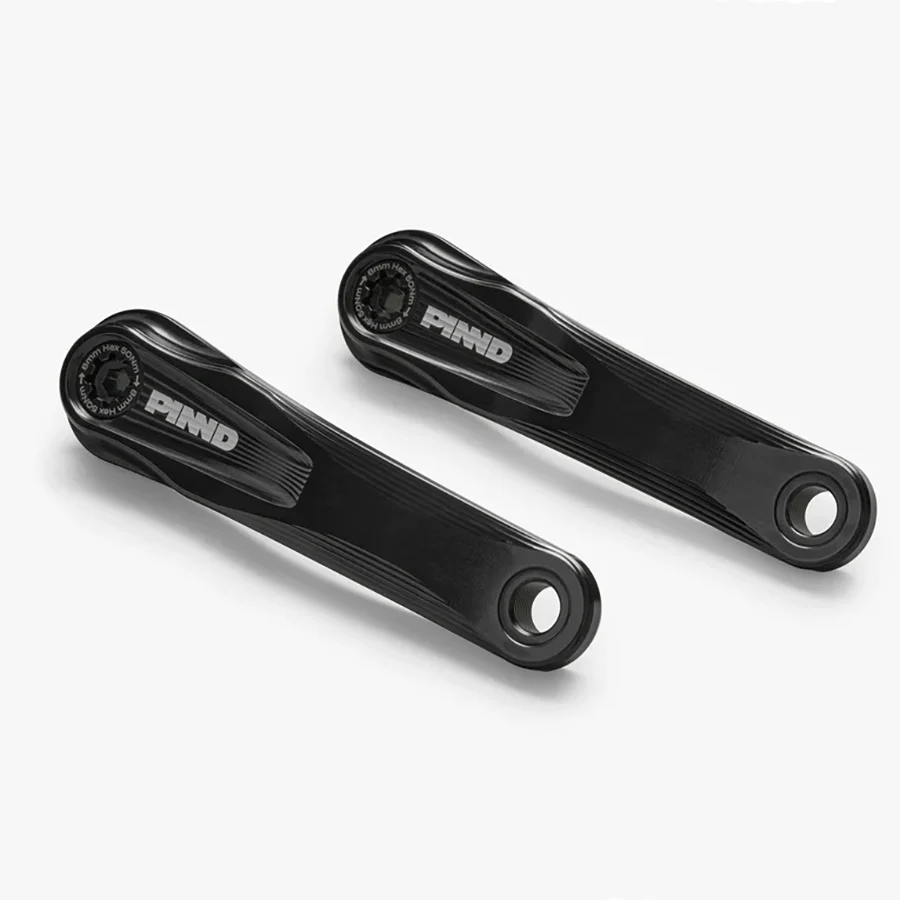

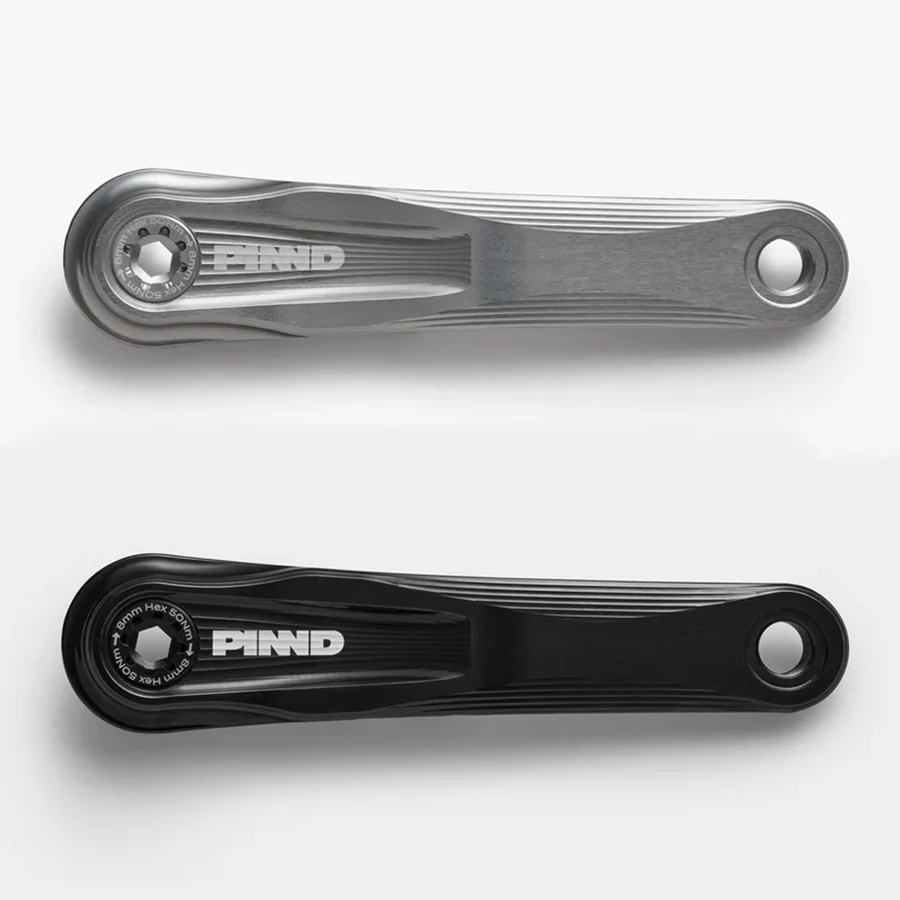

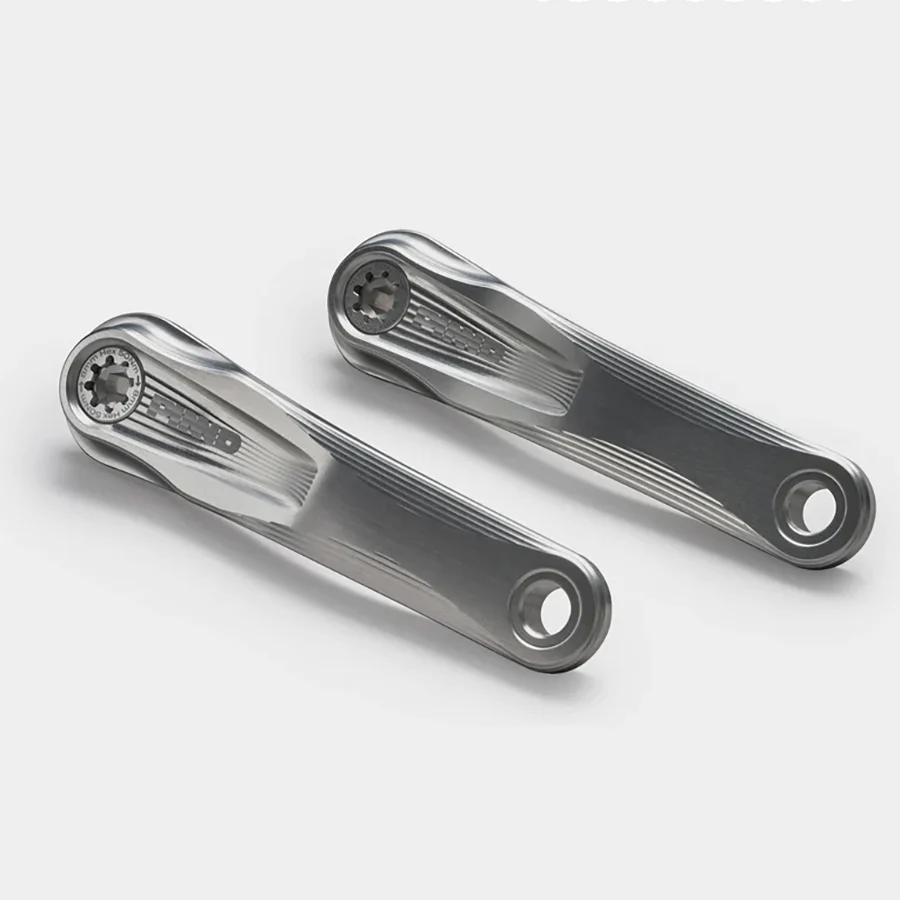

- Available in Black or Natural anodised finish - includes matching Bolt and Captive Nut in same colour as cranks
- 165mm arms = 496g
- 155mm arms = 472g
- 145mm arms = 450g
PINND E-BIKE ISIS cranks are compatible with most e-bike systems using the ISIS spline interface. For example, Bosch systems (Gen 2/4, excluding Gen 3 mini-ISIS Bosch spline shaft), Yamaha PW-X systems and Brose systems.
With Bosch systems the Q-Factor is 186mm, with Yamaha 177mm
For Brose systems the Q-Factor is 200mm
IMPORTANT NOTE these are not optimised for Specialized bikes. Specialized with Brose drive units have a 4mm offset. The PINND ISIS interface cranks are not offset so they will not be centred with the frame.
CUSTOMISE YOUR CRANKS
Choose coloured CRANK BOLTS and CAPTIVE NUTS to customise your cranks. Sold as singles so you can get wild.
NOTE - you only need to order these if you want to swap out the standard Black or Natural that ship with cranks as standard.
